Maxbright Display Media (Shenzhen) Co.,Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | Maxbright |
| Model Number : | M860EDCP-i |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 60 sets / month |
| Delivery Time : | 4~5 weeks |

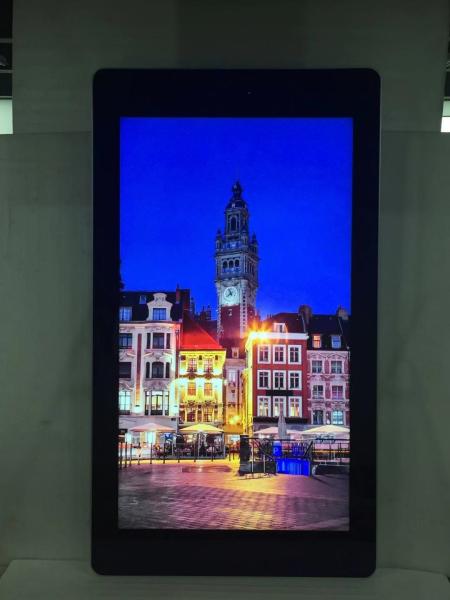

Maxbright 86 inch High Bright Outdoor LCD Signage Advertising Display Model:M860EDCP-i
LED array backlight enhanced
Model:M860EDCP-i
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000 nits, Sunlight Viewable
3840 x 2160 Max. Resolution
Aspect Ratio: 16:9 in Portrait mode enabled
Wide Viewing Angles 178 deg. (L/R/U/D)
Wide operating temp range, -20 ～ 50o C
Media player or mini-PC for content playback
Waterproof IP54 enclosure
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1895.04 x 1065.96 mm Portrait orientation |
| NATIVE RESOLUTION | 3840 x 2160 RGB, 4K resolution |
| PIXEL PITCH | 0.4935(H) x 0.4935(V) mm |
| COLOR | 16.7M / 1.07B, [CIE1931] |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 8 msec typical |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 1500W for 1500 nits, 1850W for 2000 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
OPERATING (option) | Mini PC: Intel Core i5-6200 2.5GHz, 2GB DDR, 500GB HDD, 5 x USB, 1 x RJ45, 1 x HDMI |
| TOUCH | 10 Points Metal Mesh Touch |
DIMENSION WEIGHT | 2320(H) x 1310(W) x 180(D)mm 190 Kg approx |
| Waterproof IP54 Enclosure | |
| COOLING | By cooling fans controlled by MCU |
| 1200W Mini air-condition option for Harsh outdoor | |
| ENVIRONMENTAL | Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
FAQ:
(1). Are you a manufacturer or trading company?
We are the professional manufacturer of the Outdoor Digital Signage
(2). What’s the accessory for each Outdoor Digital Signage?
Accessory such as : blower or pump, repair kits (including the PVC materials, glue, Etc.) are included;
(3). Your blowers and pumps meet CE/UL requirements?
(4). Yes, Our blowers/pumps have the certificates of CE/UL.
(5). Can we change the size and color for the inflatables we desire ?
Yes, the size and color can be customized according to your request.
(6). Can you print my logo on the inflatable products
Yes, we can print your logo on the inflatable products, and you just need to supply the artwork in velctorgraphic file .
|
