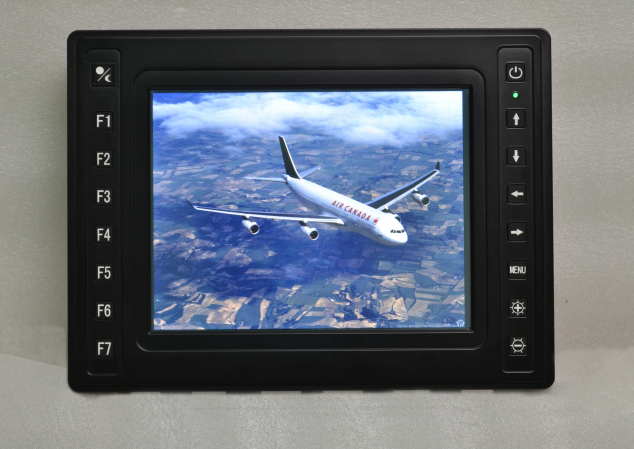

10.4” High Bright and NVIS Rugged Monitor odel : M104EECL-NV-R

with LED edge type backlight enhanced

Model :M104EECL-NV-R

The Maxbright M104EECL-NV-R is a high bright and NVIS compatible 10.4″ TFT LCD to create a wide-temperature, ruggedized, day time and night vision flat panel monitor perfect for a variety of outdoor HMI and control applications in hazardous area locations.

Featuring edge type dual LED backlight system technology, the M104EECL-NV-R offers both high bright for day time sunlight readable and at night time with NVIS feature requirement by one key switchable, and impressive extended operating temperature range of -30° to +60°C with no internal heaters or cooling fans required. The front bezel of the monitor maintains NEMA 4/IP65 protection from sprayed liquids. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.

PRODUCT HIGHLIGHTS

• 10.4″ TFT LCD True Industrial-grade Panel
• Edge type dual LED Backlight system enhanced
• 1000 nits for day time, 0.17 - 15 nits for NVIS
• Deep Dimming Capabilities from 100% to 1% by OSD buttons
• Durable AR Vandal Glass-Surfaced Resistive Touchscreen
• VGA, RS232, Power Input by IP rated round connector
• Programmable function Keys for HMI and control system
• ITO coating and Heater glass for EMI seal and frost clearance
• NEMA 4/IP65 Front Bezel and other 5 enclosure sides
• –30°C to +60°C Wide Operating Temperature Range
• Optical bonding for contrast ratio improve and Anti-shock strengthen option
• Vibration-proof, fastener system which will not loosen regardless of seat torque.
• All internal connectors and cabling are well retained to combat vehicle shock and vibration

As early as 2009, our team developed high brightness LED backlight technologies on edge type as well as array direct type. In 2016, we further improved our LED backlight technologies. Now it is even thinner and lighter, more reliability and consumes less power compared with first generation LED high bright backlight. Giving our products a significant longer lifespan and far fewer overheat issues.

Currently our products come in a variety of sizes (3.5" up to 86"), which are included in both our rugged industrial series as well as commercial series. The brightness of monitors can also be adjusted manually by POT or automatically by light sensor according to the ambient, the weather, sunlight and the night time mode. The extended operating temperature of our rugged display could be from -30℃ to +55℃, suitable for most outdoor LCD display application needs, media advertising displays and MIL-STD projects, such as avionics, marine, military vehicle, helicopter, train, bus shelter/station, airport, outdoor digital information display, chain store and shopping mall digital signage, ATM, kiosk, gas station, casino, GPS, bank, hospital, restaurant, theater, park, tourist attractions, street furniture, school and Gov. Departments.

We are more than capable of meeting any custom design needs you might have to our open frame high brightness LCD modules, and furthermore we can provide you with total solution packages for your commercial outdoor/indoor LCD display or rugged IP65 industrial grade and further IP66 MIL-STD grade needs.

We are looking forward to cooperating with display system integrators, end-users and rugged LCD monitor manufacturers/integrators from around the world.
