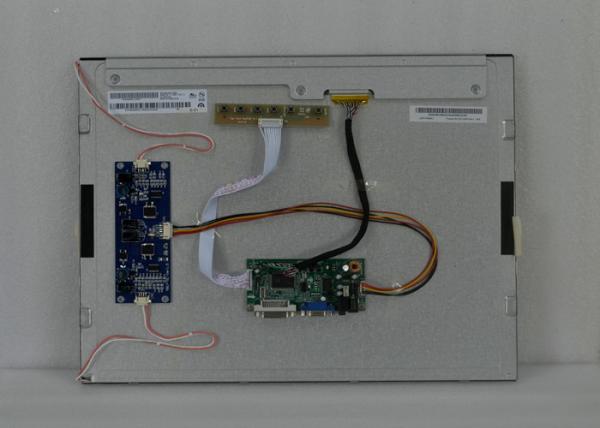

19” High Bright LCD Module Model:OF190EECL
LED Edge Type Backlight Enhanced
Model:OF190EEC
FEATURES:
Bright Active Matrix TFT-LCD Display
1280 x 1024 Max. Resolution
1200 nits, LED backlight enhanced
Completely Sunlight Viewable
Digital or Analog Interface
Multiple Input Selections
Wide Viewing Angles 170 deg (L/R)
Aspect Ratio: 5:4
Main Specs of 19” High Bright Module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 376.32 x 301.06 mm |
| NATIVE RESOLUTION | 1280 x 1024 RGB VGA to SXGA resolution |
| PIXEL PITCH | 0.294(H) x 0.294(V) mm |
| COLOR | 16.7M color (RGB 6 bits + Hi-FRC data) |
| BACKLKGHT TYPE | LED Edge type |
| BRIGHTNESS | 1200 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1000:1, Dynamic contrast ratio up to 10000:1 |
DIMMING | 100:1 auto dimming by Light Sensor or manually by + / - button or POT |
| VIEWING ANGLE | 85/85/80/80 |
| RESPONSE TIME | 3.6ms Tr, 1.4ms Tf |
| INTERFACE | VGA and, DVI |
| LIFETIME | >45000 hrs |
| OPERATING VOLTAGE | 12VDC, 4.3A |
| POWER CONSUMPTION | 50Watt for 1200 nits, |
| STANDBY MODE | 3 Watt or less |
| ACCESSORIES | VGA cable and AV cable (option) |
| POWER SUPPLY | Power Adapter with Cord (option) |
| TOUCH | 5-wire resistive or PCAP touch (option) |
DIMENSION WEIGHT | 396(H) x 324(V) x 12(D) mm for panel only 2 Kg approx. for panel only |
| ENCLOSURE | Iron Sheet folded Open Frame enclosure(option) |
| OPTICAL BONDING | AR glass + ITO coating for EMI shielding (option) |
| SHOCK | 50G half sine 20ms 1 time for X, Y, Z direction |
| VIBRATION | 1.5G 10-200HZ X,Y,Z directions 30minutes, |
| ENVIRONMENTAL | Operating Temperature -10 to 50C, |
(option) | Wide temp. -30 to 55C with 30W internal heater Controlled by temp sensor automatically |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
|
|
