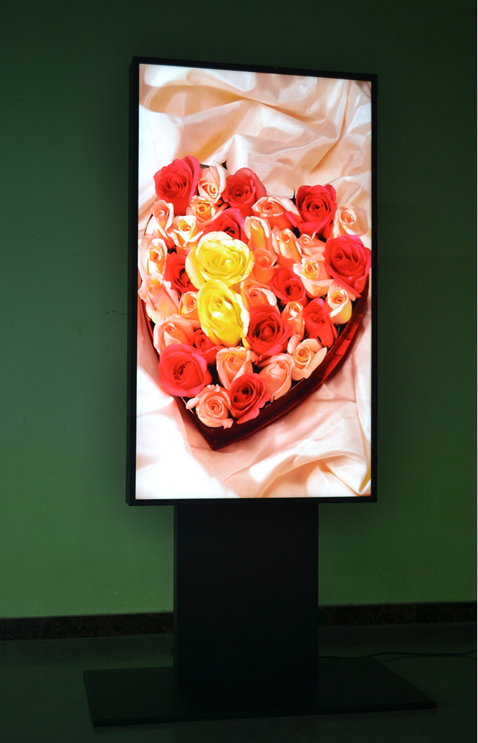

Maxbright 75" High Brightness Store Window Signage E-poster M750EDCP-SW
LED Array Backlight Enhanced
Model: M750EDCP-SW
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500-3000 nits, sunlight readable
3840 x 2160 4K UHD Max. Resolution
Aspect Ratio: 9:16 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Narrow Bezel and Fashion Housing Design
Media player box or mini PC Built-in (option)
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1649.664 x 927.936mm Portrait orientation |
| NATIVE RESOLUTION | 3840 x 2160 RGB 4K resolution |
| PIXEL PITCH | 0.429(H) x 0.429(V) mm |
| COLOR | 1.07 M, 10 bits |
| HORIZONTAL FREQ. | 110KHz ~ 139.5KHz(HDMI) |
| VERTICAL FREQ. | 47Hz ~ 63Hz(HDMI) |
| BRIGHTNESS | 2500-3000 cd/m2 |
| CONTRAST RATIO | 1200:1, Dynamic Contrast: 10,000:1 |
| DIMMING | Auto Dimming by Light Sensor, 100% to 10% |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 6msec typical |
| INTERFACE | VGA, HDMI x 2, |
| MEDIA PLAYER | Media Player (RK3288 Quad-core) 2G/8G memory |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | 100 ~ 240VAC 50/60Hz |
| POWER CONSUMPTION | 860W at 3000 nits brightness level |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA, USB, RJ45 cable x 1 | |
| OPERATING | Mini PC: D2550 Quad-Core 1.86GHz, 2GB DDR2 |
| (option) | 500 HDD, 5 x USB ports, 1 x RJ45, Wi-Fi |
| TOUCH | Metal Mesh CAP, 10 points with USB controller(option) |
| DIMENSION | 1680(H) x 956(W) x 120(D) mm without floor stand |
| Without Hang Mount Bracket | |
| WEIGHT | 85 Kg approx net weight w/o floor stand |
| ENCLOSURE | Iron Sheet folded, Outdoor Powder Coating, |
| COOLING | By cooling fans controlled by intelligent MCU controller |
| TEMPERATURE. PROTECT | High Temperature Protection for 60 oC or over |
| ENVIRONMENTAL | Operating Temperature -20-45oC, |
| Wide temp. -30-45oC (option) | |
| Operating Humidity 10%-80% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| Warranty | One year |
|
|
