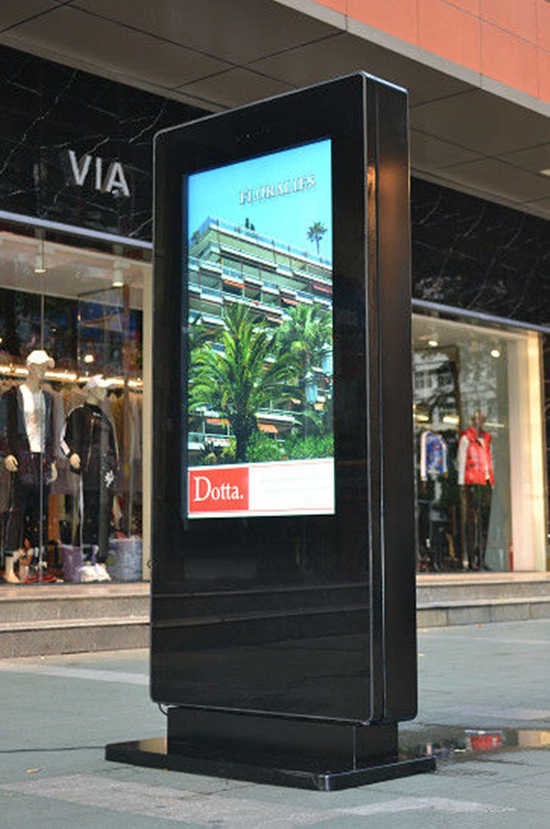

Maxbright 49 inch Outdoor Double Sided High Bright IP65 Advertising Totem Model: T490EDCP-DF
LED array Backlight Enhanced
Model: T490EDCP-DF
FEATURES:
Active Matrix TFT-LCD PD panel
Dual face 49” Portrait display
High Brightness 2500 nits, Sunlight Viewable
1920 x 1080 Resolution, 3840 x 2160 model available
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30～50o C
Media player box or mini PC for content display
Air-conditioner cooling for harsh environment option
| PANEL TYPE | 2 x 49” a-Si active matrix TFT-LCD |
| ACTIVE AREA | 632.5 x 1096.2 mm portrait for both sides |
| NATIVE RESOLUTION | 1080 x 1920 RGB, 4K model available |
| PIXEL PITCH | 0.55926(H) x 0.55926(V) mm |
| COLOR | 16.7 Million, 8 bits depth |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12ms / 6ms |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK 3288 CPU) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 680W at 2500 nits level for two sides w/o air-con |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: NDiS-1660C, 2GB DDR2, 4GB option |
| (option) | 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi |
| 3G module option | |
DIMENSION WEIGHT | 1940(H) x 870(W) x 320(D) mm w/o Air-Con, 245 Kg approx. |
| ENCLOSURE | Iron sheet with outdoor powder painting |
| COOLING | By cooling fans controlled by MCU for outdoor |
ENVIRONMENTAL | Operating Temperature -20-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One year, limited for 2nd year |
|
|
