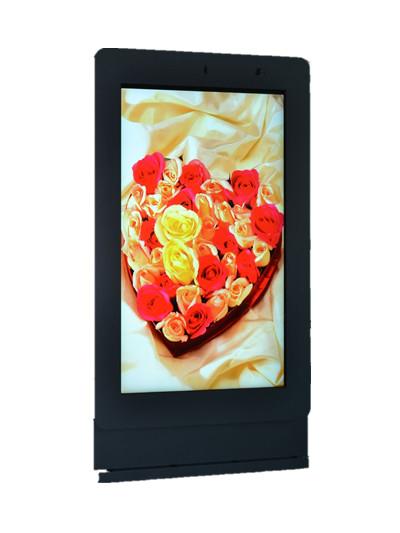

Maxbright 75" High Bright Outdoor Dual Face 4K Digital Signage Totem Model : T750EDCP-DF
LED Array Backlight Enhanced
Model: T750EDCP-DF
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500-3000 nits, Sunlight Viewable
3840 x 2160 QWUXGA Resolution
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Industrial mini PC for content playback
Waterproof IP65 enclosure
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1649.664 x 927.936 mm portrait orientation |
| NATIVE RESOLUTION | 2160 x 3840 RGB QWUXGA |
| PIXEL PITCH | 0.429(H) x 0.429(V) mm |
| COLOR | 1.07 Billion, 10 bits |
| HORIZONTAL FREQ. | 110KHz ~ 139.5KHz |
| VERTICAL FREQ. | 98Hz ~ 122Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500 - 3000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 10000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 6msec typical |
| INTERFACE | VGA, AV, S-video, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK 3288) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 1800W for two panels w/o air-con |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA, Composite, S-Video cable x 1 | |
| OPERATING | Mini PC: i3 or i5 CPU 4GB DDR2 |
| (option) | 500G HDD, 5 x USB ports, 1 x RJ45, WiFi (option) |
DIMENSION NET WEIGHT | 2250(H) x 1260(W) x 320(D) mm, (without air-con) 295 Kg approx (without air-con) |
| Waterproof IP65 Enclosure option | |
| COOLING | By cooling fans controlled by MCU for outdoor |
| 2500W Ind. air-conditioner for harsh outdoor(option) | |
ENVIRONMENTAL OPTION | Operating Temperature -20-45oC, Wide temp. -30-50oC (with cool/warm air-con) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
|
|
