Maxbright Display Media (Shenzhen) Co.,Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | Maxbright |
| Model Number : | T490EDCP-DF |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 50-100 unit / month |
| Delivery Time : | 4~5 week |

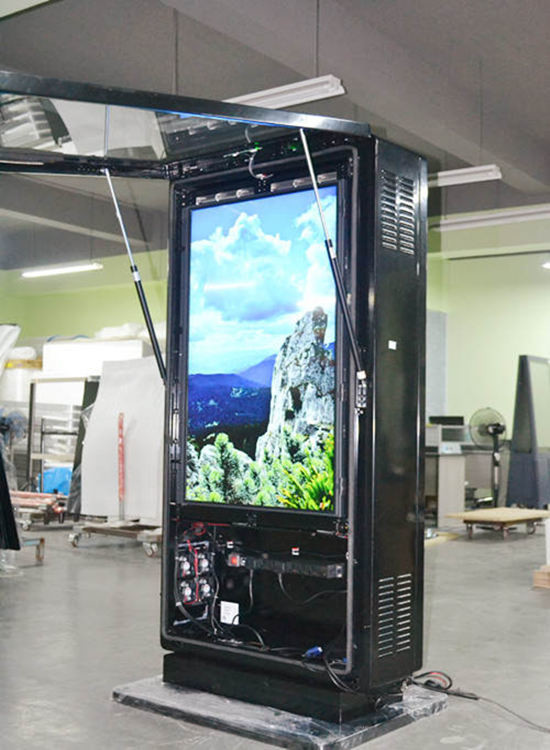

Maxbright 49" Outdoor Dual Face High Bright IP65 Advertising Totem Model: T490EDCP-DF
LED array Backlight Enhanced
Model: T490EDCP-DF
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000 - 2500 nits, Sunlight Viewable
QWUXGA 1920 x 1080 RGB, 3840 x 2160 RGB(4K) model available
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player box or mini PC for content playback
Waterproof IP65 enclosure
| PANEL TYPE | 2 x 49" a-Si active matrix TFT-LCD | ||
| ACTIVE AREA | 604.2 x 1073.8 mm in portrait orientation | ||
| NATIVE RESOLUTION | 1080 x 1920 RGB, 3840 x 2160 RGB(4K) model available | ||
| PIXEL PITCH | 0.55926(H) x 0.55926(V) mm | ||
| COLOR | 16.7 Million, 8 bits | ||
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz | ||
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) | ||
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced | ||
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 10000:1 | ||
| DIMMING | Auto-dimming by Light Sensor | ||
| VIEWING ANGLE | 89/89/89/89 | ||
| RESPONSE TIME | 12msec/ 6msec typical | ||
| INTERFACE | VGA,, HDMI x 2 | ||
| MEDIA PLAYER | Media Player (RK3288 CPU) (option) | ||
| REMOTE CONTROL | Support for Full OSD Features | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | ||
| POWER CONSUMPTION | 2500 nits: 280W for one panel, 580W for whole unit | ||
| STANDBY MODE | 10 Watt or less | ||
| ACCESSORIES | AC Power Cord, Remote Controller | ||
| HDMI, VGA cable x 2 | |||
| OPERATING | Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2 | ||
| (option) | 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option) | ||
| TOUCH | 10 points PCAP, or metal mesh option | ||
DIMENSION WEIGHT | 1940(H) x 870(W) x 320(D) mm, (w/o basement) 285 Kg approx (without air-con) | ||
| Waterproof IP65 Enclosure | |||
| COOLING | By cooling fans controlled by MCU for outdoor | ||
| 800W air-conditioner option for harsh outdoor | |||
| FRONT PROTECTION | 3+3 AR vandal glass or 6mm AR vandal glass | ||
ENVIRONMENTAL OPTION | Operating Temperature -20-45oC, Wide temp. -30-50oC (with cool/warm air-con) | ||
| Operating Humidity 10%-85% | |||
| Storage Temperature -30-60oC | |||
| Storage Humidity 5%-90% | |||
| WARRANTY | One Year |
|
|
