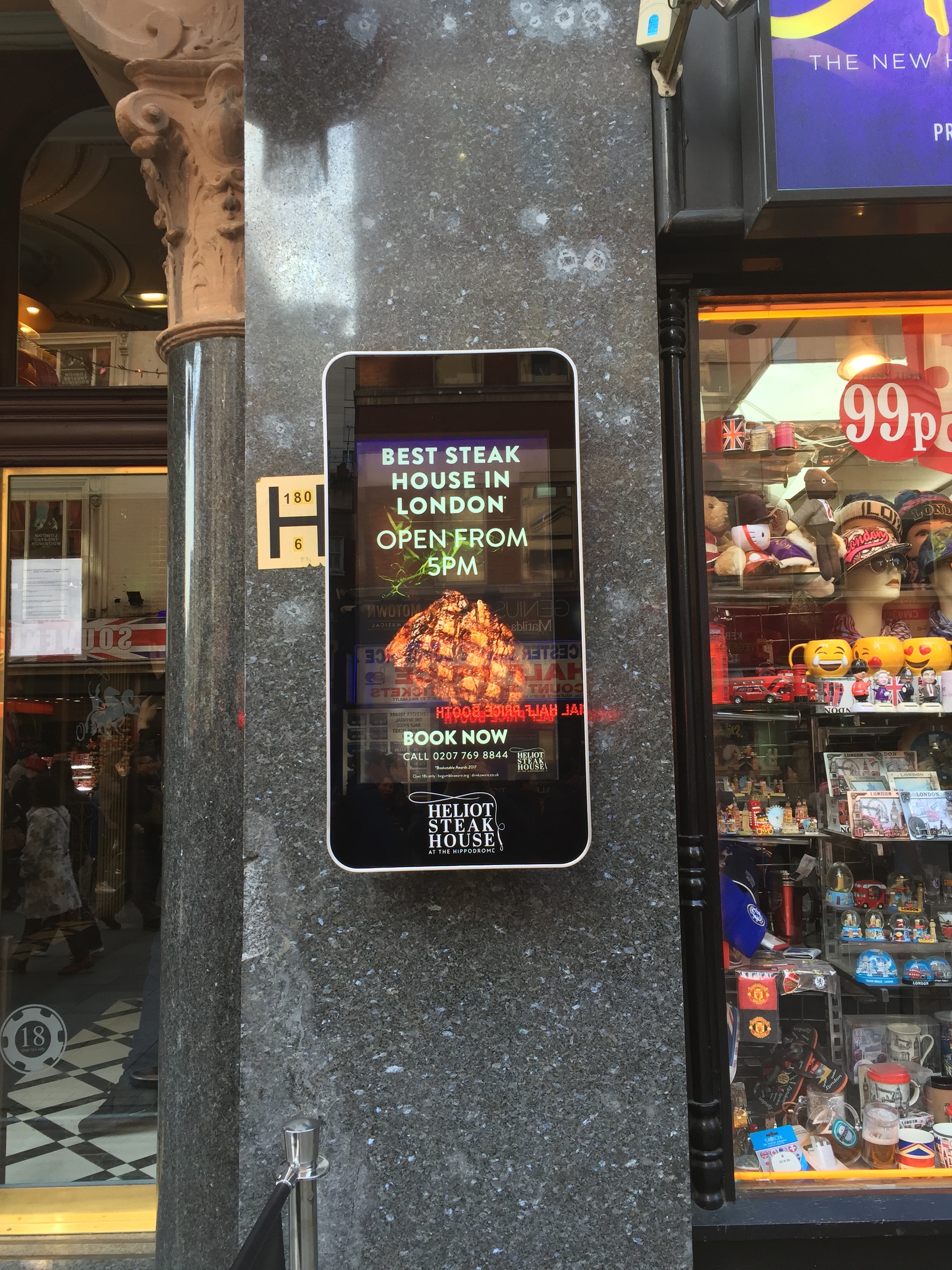

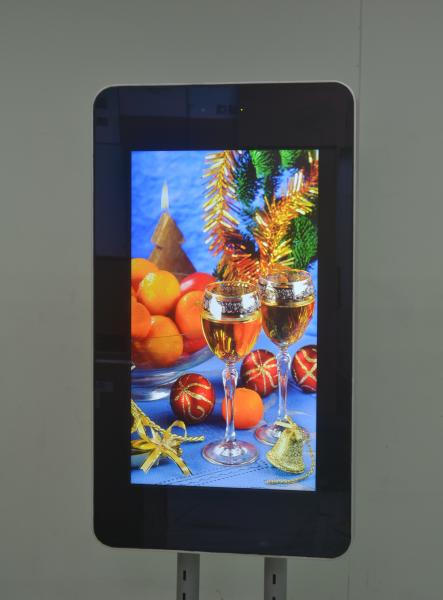

32 Inch Silver High Brightness Outdoor Wall Mount LCD Digital Signage
Adopt straight down high bright LED backlight, LCD brightness can
reach to 2000-2500 nits (customized), Built-in light sensor, the
screen brightness can be adjusted automatically according to the
ambient brightness, energy saving.
System functions:
Android hardware options:
CPU: RK3288 / RK3399
RAM+ROM: 2G+8G/4G+32G
Operating system: Android 7.1
Interface: RS232.4,TTL serial port.1, USB3.01, USB2.05
Network support: 3G/4G/Wi-Fi/RJ45 Ethernet/Bluetooth /GPS
Intelligent dimming method
The day is gorgeous and the night is not dazzling
Day: Still clear under the sunlight
Night: the picture is automatically adjusted by light sensor, soft
and not dazzling
Specification Of Outdoor LCD Digital Signage
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 392.8 x 698.4 mm portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB |
| PIXEL PITCH | 0.55926(H) x 0.55926(V) mm |
| COLOR | 16.7 Million, 8 bits |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12 msec typical |
| INTERFACE | VGA, HDMI |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 130W for 2000 nits, 145W for 2500 nits |
| STANDBY MODE | 3 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
OPERATING (option) | Media Player RK3288 Quad-core Cortex-A17 1.8GHz, 2GB DDR3, 32-64GB SD, 4 x USB ports, 1 x RJ45 |
| 1 x HDMI, 2 X RS232, Android OS 5.1 | |
DIMENSION WEIGHT | 1041(H) x 520(W) x 140(D)mm |
| Waterproof IP54 Enclosure with Wall Mount Bracket | |
| COOLING | By cooling fans controlled by MCU for outdoor |
| 400W Mini air-condition option for harsh outdoor | |
| ENVIRONMENTAL | Operating Temperature -10-45oC, |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
Product Features:
1. Automatic brightness control: automatically adjust the
brightness of the screen according to the changes of outdoor
environment light, bright and visible under the sunlight during the
day, soft and gorgeous at night, energy saving and environmental
friendly.
2. Intelligent temperature control: According to the change of
internal environment temperature, intelligent start fans or air
conditioner to dissipate heat. When the temperature reaches above
30℃, the fans or air conditioner will start to dissipate heat
automatically. When the temperature is below 20℃, the cooling fans
or air conditioner will be automatically stopped.
3. High temperature protection function: When casing internal
ambient temperature is above 60℃, the protection function will
automatically start, automatically reducing the brightness to
around 500 nits; When the internal ambient temperature is below
40℃, the brightness will be automatically restored to the
appropriate viewing brightness.
4. Low-temperature protection: When the internal environment
temperature is lower than -10℃, the heating function will be
started automatically; When the internal temperature is above 5℃,
the heating function will be stopped automatically. (This option is
suitable for harsh outdoor working environment below -20℃)
5, intelligent remote monitoring function: through RS232
communication interface and network connection, real-time device
security and working status data upload, remote monitoring of the
main parts of the machine is working properly, timely find the
device security or any failure, reduce maintenance time and cost,
improve maintenance efficiency.
6. Besides anti-glare or AR vandal glass, anti-UV filim option on the front glass is available to make LCD screen black spots problem free even operating under strong direct sunshine
Why we were chosen:
1. More than 10 years of professional experience in outdoor digital signage manufacturing.
2. LCD items from 6.5" to 86" in various brightness can be customized according to your specific requirements.
3. The minimum order quantity can meet all your requirements.
4. Modes of transportation: International express, air transportation and sea transportation.
5. Warranty: 1 year warranty, lifetime maintenance.
|
